BIOLITE BaseCharge 1500 **CLEARANCE**

BIOLITE BaseCharge 1500

Looking to power bigger jobs over longer periods of time? Step up to the BaseCharge 1500 and have 1520 watt hours of shareable energy at your fingertips: from medical devices to refrigerators, this high capacity power station can handle hungry devices and an array of electrical requirements. Integrates with BioLite Solar for full solar generator solution and utilizes Maximum Power Point Tracking to pull up to 30% more energy than other non-MPPT systems.

Features:

• Up to 1200W (2,000W Surge) AC Output, USB-C PD (100W) and Wireless Charging Included
• Extra Large Easy-Read Display for real-time feedback and control
• Safe and Reliable design with BioLIte 12 Checkpoint Safety System
• Integrates with BioLite Solar for full solar generator solution and utilizes Maximum Power Point Tracking (MPPT) to pull up to 30% more energy than non-MPPT systems

What is Chargers:

Frequently Asked Questions:

How do you recharge BaseCharge power stations?

• BaseCharge can be recharged via the HPP input through the included AC charging adapter, solar (sold separately), DC Carport adapter (sold separately), or through the USB-C PD input/output port.

How long does it take to recharge the BaseCharge?

• From The Wall: 13.5 hrs
• From Wall + USB-C PD: 8 hrs
• From Solar: 4 hrs (4X SolarPanels 100 in ideal conditions)

What can the BaseCharge Power?

• BaseCharge 1500 has a 1521 Wh internal battery with an ability to provide up to 1200W of continuous power with a 2400W Surge protection.

How many devices can BaseCharge charge at once?

• Your BaseCharge can power multiple devices at once so long as the total power required stays within the limit of your unit's max output wattage. For BaseCharge 1500 this is 1200 watts. Refer to your BaseCharge's smart dashboard for real-time feedback on how long you can run or recharge your multiple devices until BaseCharge is empty.

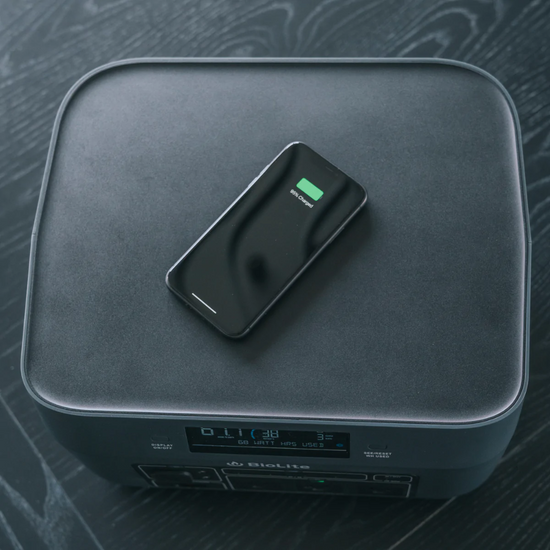

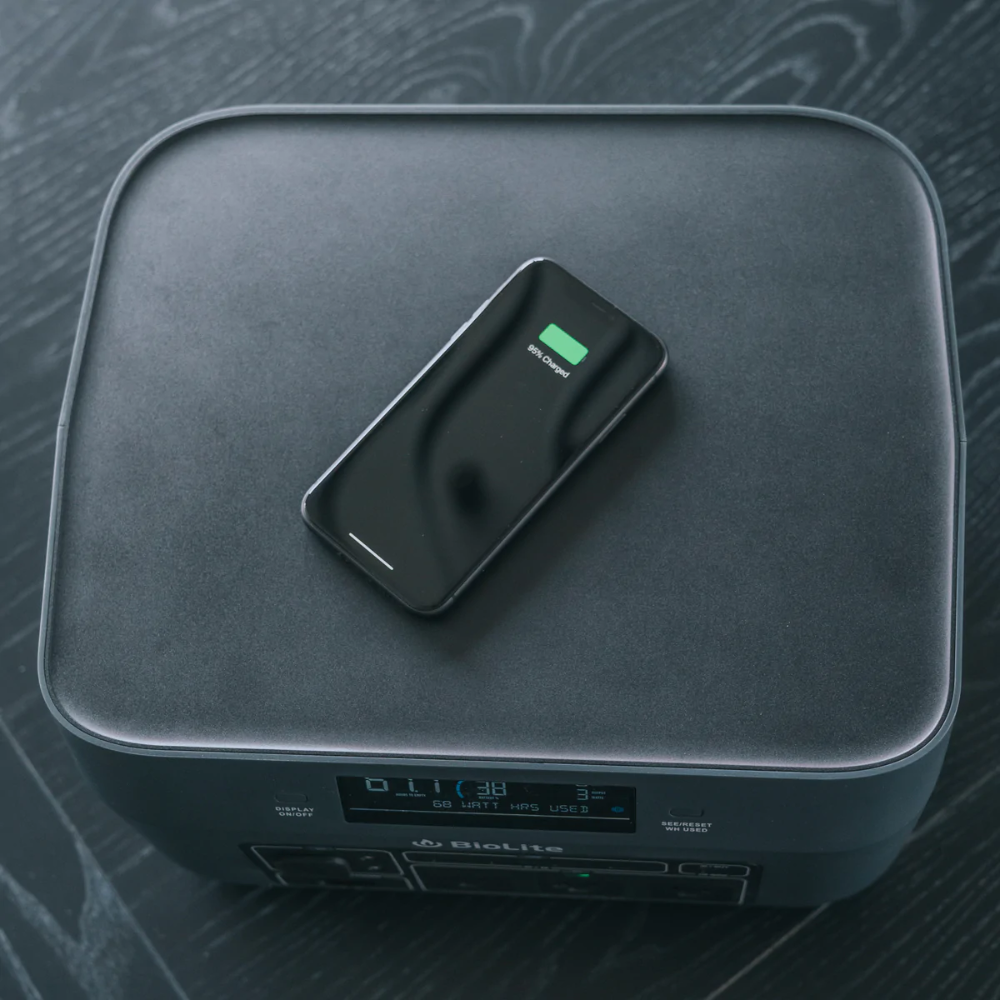

• Note: for wireless charging, BaseCharge can only recharge a single device at a time on the wireless deck.

Can you explain BioLite's 12 Checkpoint Safety System?

• BioLite's internal custom circuitry and firmware are constantly monitoring your system so you can share power to devices safely and reliably. This includes core checks like over and under voltage limits, charge current limit, short circuit protection, high and low-temperature limits, discharge current limit, inverter temperature limit, and more. In the event your unit experiences an error, the checkpoint system will send notifications to the message center on your dashboard and may cut off power to the port facings, protecting both BaseCharge and your external devices.

What does an AC Inverter do? Why is that important?

• AC inverters (included in all BioLite BaseCharge Power Stations) convert direct current (DC) power into alternating current (AC), the kind of power that comes out of a typical wall outlet you'll find at home. Many everyday appliances and devices are designed to run on AC , making an AC inverter a valuable feature in being able to power a wide variety of items to keep your life running.

What is the maximum amount of panels that I can connect to the Basecharge?

• BaseCharge 1500 can receive up to [4] BioLite SolarPanel 100s for a maximum input of 400 watts.

Is the BaseCharge waterproof?

• No, BaseCharge is not waterproof and should not be used in rainy conditions. Bring under shelter or use indoors.

What temperature is best to store my BaseCharge?

• The BaseCharge operates best in temperatures between 30F - 100F

Can I take my BaseCharge on a plane?

• No, you cannot take BaseCharge 1500 on a plane. Both BaseCharge models exceed FAA's regulated limit of 100 Watt Hours for lithium ion batteries. BaseCharge - as with all high capacity power stations - must be transported through ground transportation.

What is the maximum amount of panels that I can daisy chain together?

• Using BioLite's chaining adapter (an accessory sold separately), you can chain up to [4] SolarPanel 100s for 400 watts of input to your power station via a single HPP connection point.

Technical Information:

AC OUTPUTS: (3x) 230 V: Pure Sine Wave, 1200 W, 2,400 W Surge

WEIGHT: 12.1 kg

BATTERY: 1521 Wh (21.6 V, 70.4 Ah) Li-Ion (NMC)

DIMENSIONS: 367 x 310 x 209 mm

USB OUTPUTS
(2x) USB-A: 5 V/2.4 A, (2x) USB-C: 5 V/3.0 A,

(1x) USB-C PD: 5 V, 9 V, 12 V, 20 V / 5 A (100 W)

INPUTS
Wall/Solar Input (HPP): 400 W (10-30 V DC, 20 A max)
USB-C PD: 100 W

WIRELESS OUTPUT
10W Wireless Charger

DC OUTPUTS
(1x) 12 V Car Port Output: 120 W, (2x) 12 V DC Barrel Ports: 120 W, 5.5 mm OD / 2.1 mm ID
