BaseCharge 600 **CLEARANCE**

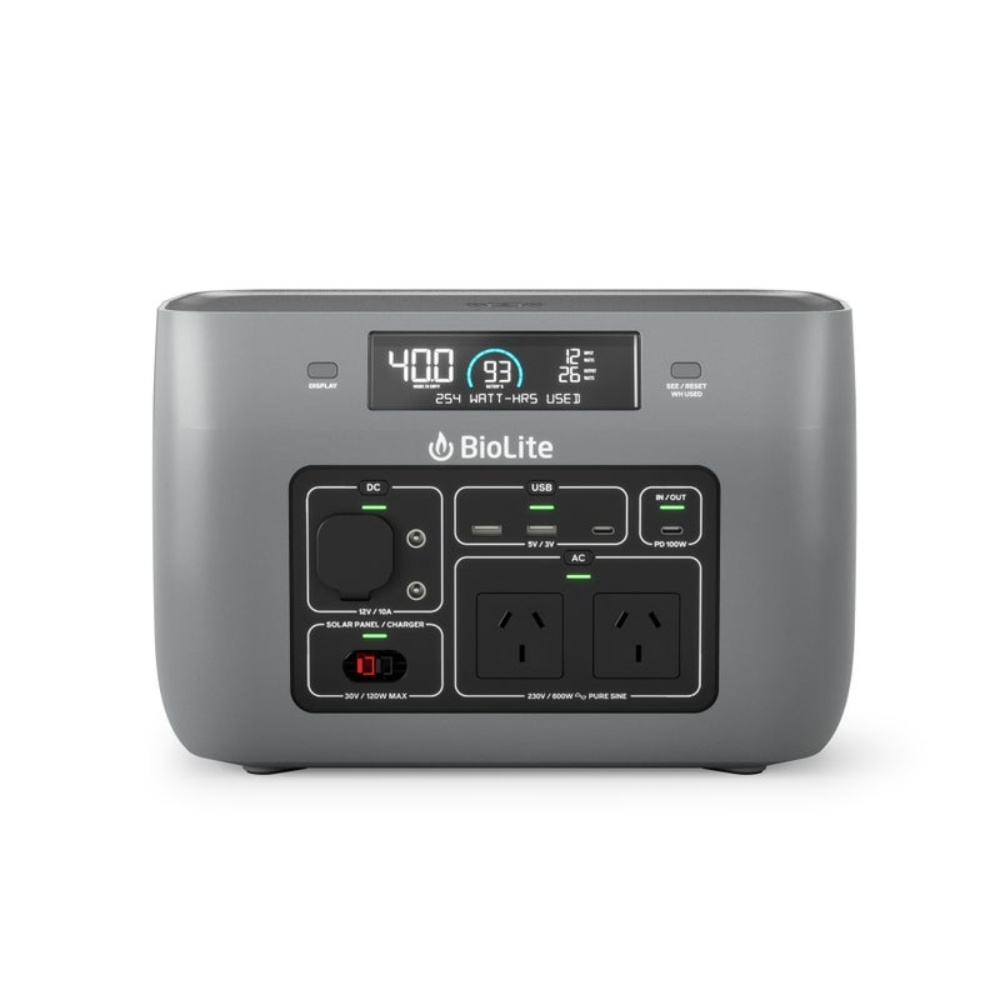

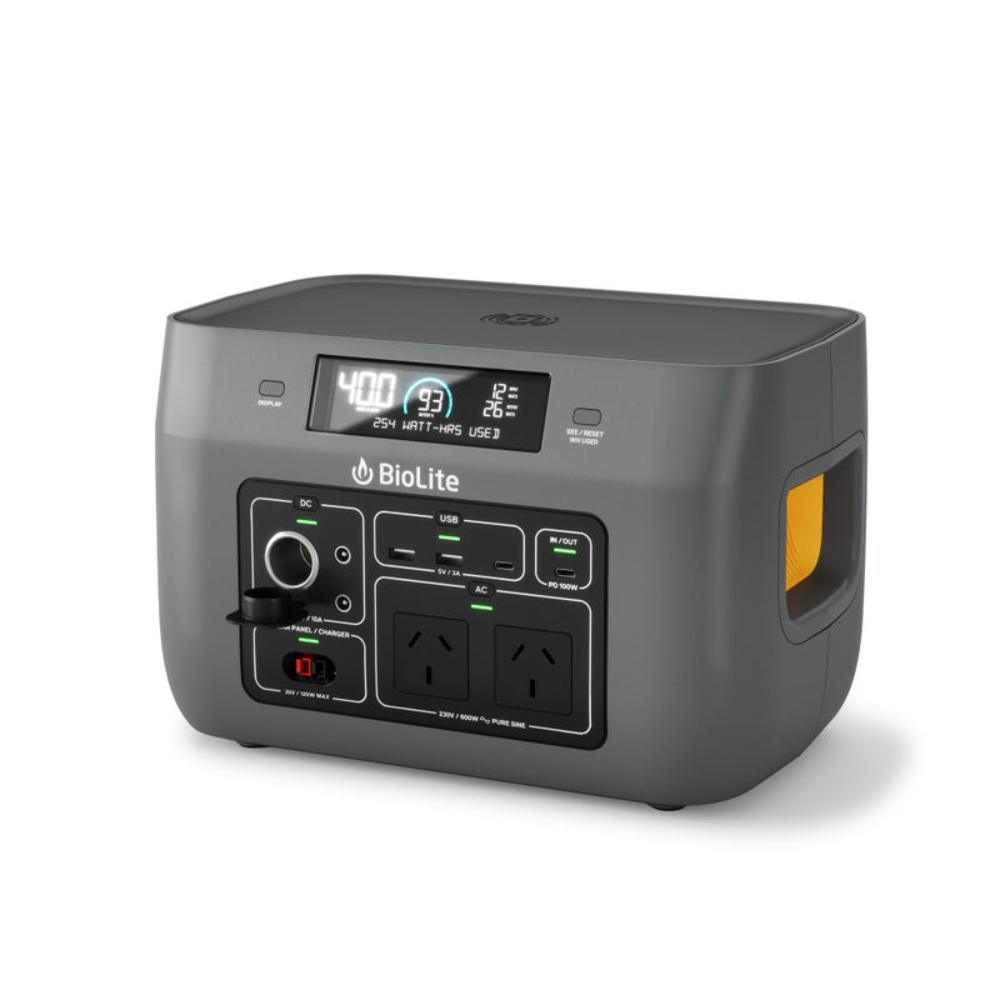

BIOLITE BaseCharge 600

A high capacity power station ready to keep you charged off-grid, the BaseCharge 600 delivers 622 watt hours of flexible energy to your own personalized ecosystem of devices for an on-grid experience wherever you may be. Integrates with BioLite Solar for full solar generator solution and utilizes Maximum Power Point Tracking to pull up to 30% more energy than other non-MPPT systems.

Features:

• 622Wh - 25% more capacity than 500Wh power stations
• Up to 600W (1,000W surge) AC output, USB-C PD (100W) and Wireless Charging included
• Extra Large Easy-Read Display for real-time feedback and control
• Safe and Reliable design with BioLIte 12 Checkpoint Safety System

What it Chargers:

Frequently Asked Questions:

How do you recharge BaseCharge power stations?

• BaseCharge can be recharged via the HPP input through the included AC charging adapter, solar (sold separately), DC Carport adapter (sold separately), or through the USB-C PD input/output port.

How long does it take to recharge the BaseCharge?

• From The Wall: 7 hrs
• From Wall + USB-C PD: 3.5 hrs
• From Solar: 6 hrs (1X SolarPanel 100 in ideal conditions)

What can the BaseCharge model power?

• BaseCharge 600 has a 622 Wh internal battery with an ability to provide up to 600W of continuous power with a 1000W Surge protection.

How many devices can BaseCharge charge at once?

• Your BaseCharge can power multiple devices at once so long as the total power required stays within the limit of your unit's max output wattage. For BaseCharge 600 this is 600 watts. Refer to your BaseCharge's smart dashboard for real-time feedback on how long you can run or recharge your multiple devices until BaseCharge is empty.
• Note: for wireless charging, BaseCharge can only recharge a single device at a time on the wireless deck.

Is the BaseCharge waterproof?

• No, BaseCharge is not waterproof and should not be used in rainy conditions. Bring under shelter or use indoors.

What temperature is best to store my BaseCharge?

• The BaseCharge operates best in temperatures between 30F - 100F

What is the maximum amount of panels that I can connect to the BaseCharge?

• BaseCharge 600 can receive [1] BioLite Solar Panel 100, or a maximum input of 120 watts from other 12V solar panels.

Can you explain BioLite's 12 Checkpoint Safety System?

• BioLite's internal custom circuitry and firmware is constantly monitoring your system so you can share power to devices safely and reliably. This includes core checks like over and under voltage limits, charge current limit, short circuit protection, high and low temperature limits, discharge current limit, inverter temperature limit, and more. In the event your unit experiences an error, the checkpoint system will send notificiations to the message center on your dashboard and may cut off power to the port facings, protecting both BaseCharge and your external devices.

What does an AC Inverter do? Why is that important?

• AC inverters (included in all BioLite BaseCharge Power Stations) convert direct current (DC) power into alternating current (AC), the kind of power that comes out of a typical wall outlet you'll find at home. Many everyday appliances and devices are designed to run on AC , making an AC inverter a valuable feature in being able to power a wide variety of items to keep your life running.

Can I take my BaseCharge on a plane?

• No, you cannot take BaseCharge 600 on a plane. Both BaseCharge models exceed FAA's regulated limit of 100 Watt Hours for lithium ion batteries. BaseCharge - as with all high capacity power stations - must be transported through ground transportation.

How do I know if my device will work with the BaseCharge?

• Refer to your devices power specifications. This includes looking at the plug type required to run or recharge your device (12V car port, barrel port, USB-A, USB-C, AC) as well as the continuous power requirements or rechargable battery capacity of your device. For rechargeable devices, a good reference is if your device's battery is smaller than that of BaseCharge, it will likely be compatible. For continous power devices, BaseCharge 600 can provide up to 600W of real-time output with 1000W Surge.
• For wireless recharging, BaseCharge's deck is compatible with devices that have built-in compatibility for wireless recharging, most notably smartphones, tablets, and some laptop models.

What is the maximum amount of panels that I can daisy chain together?

• Using BioLite's chaining adapter (an accessory sold separately), you can chain up to [4] SolarPanel 100s for 400 watts of input to your power station via a single HPP connection point.

Technical Information:

WEIGHT: 5.9kg

DIMENSIONS: 309 x 200 x 201mm

BATTERY: 622 Wh (21.6 V, 28.8 Ah) Li-Ion (NMC)

INPUTS: Wall/Solar Input (HPP): 120 W (10-30 V DC, 10 A max) / USB-C PD: 100 W

AC OUTPUTS: (2x) 230 V: Pure Sine Wave, 600 W, 1,000 W Surge

USB OUTPUTS: (2x) USB-A: 5 V/2.4 A / (1x) USB-C: 5 V/3.0 A / (1x) USB-C PD: 5 V, 9 V, 12 V, 20 V / 5 A (100 W)

WIRELESS OUTPUT: 10W Wireless Charger

DC OUTPUTS: (1x) 12 V Car Port Output: 120 W / (2x) 12 V DC Barrel Ports: 120 W, 5.5 mm OD / 2.1 mm ID
